UI Overview

The Cloosphere screen is divided into four areas: Sidebar, Header, Chat Area, and Input Area. This page covers the role and usage of each area.

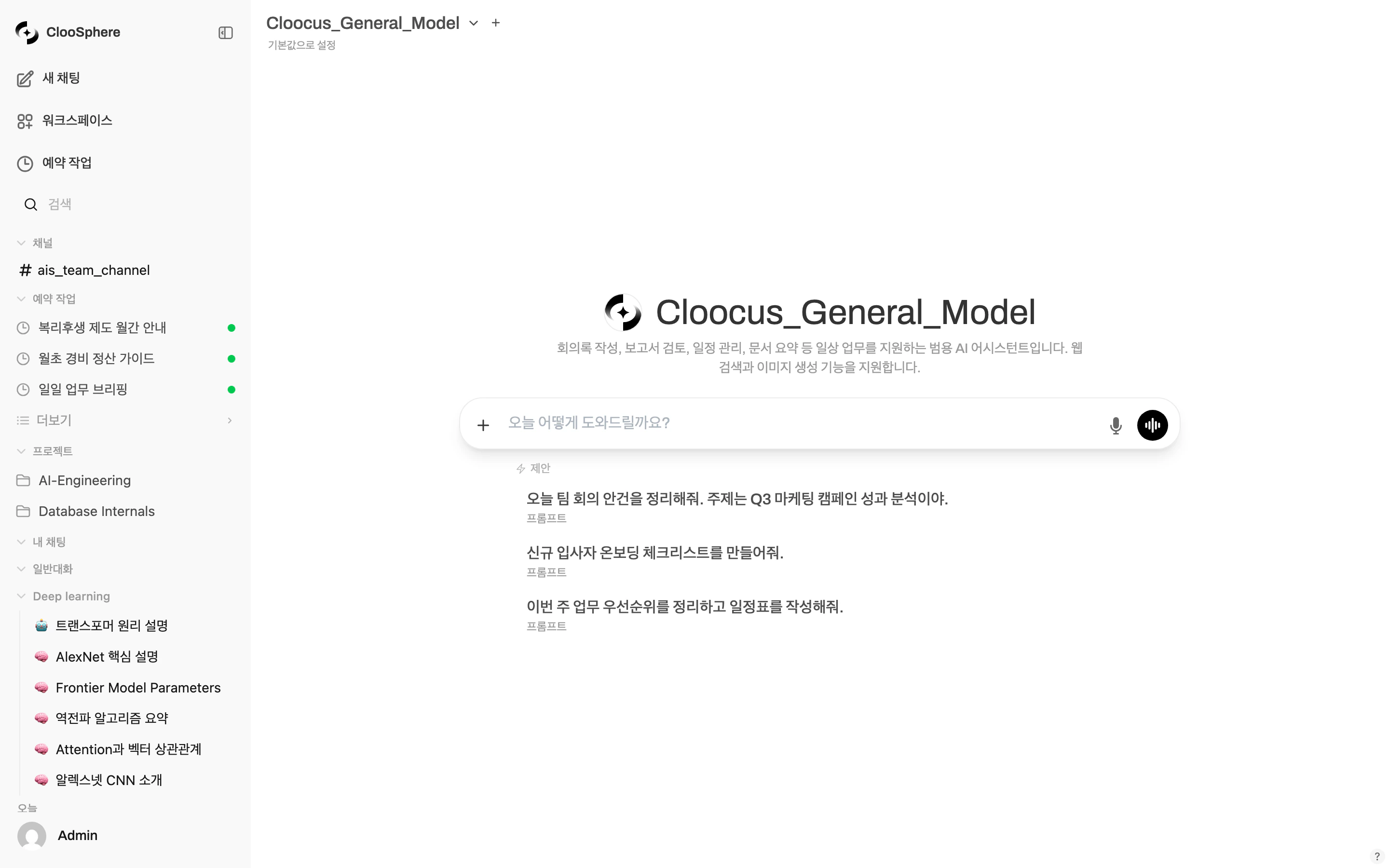

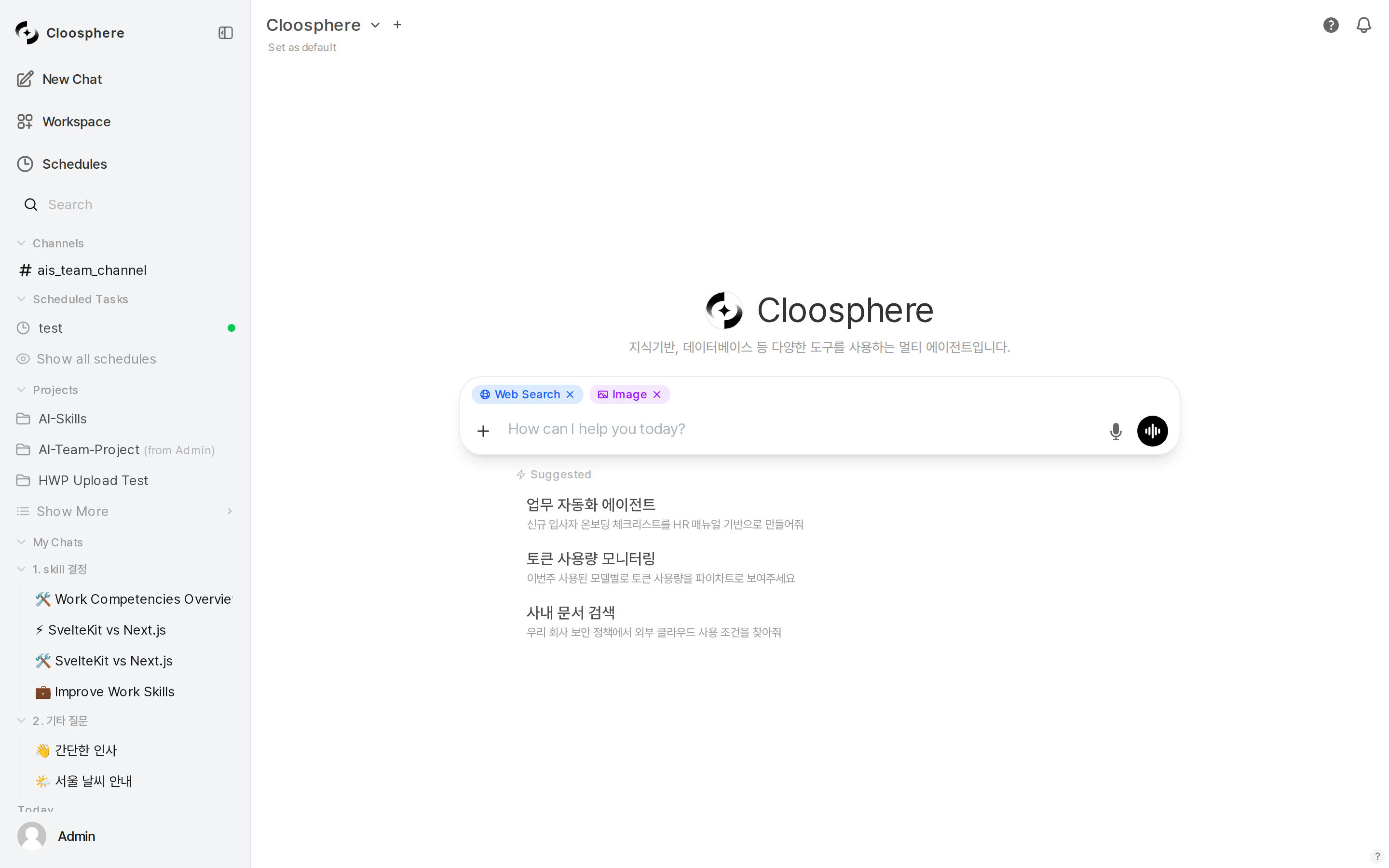

Overall Layout

The Cloosphere main screen consists of these four areas:

Area	Position	Role
Sidebar	Left	Chat list, Workspace, Projects, Channels navigation
Header	Top	Model selection, multi-model addition, default settings
Chat Area	Center	Conversation area where AI responses and user messages appear
Input Area	Bottom	Message input, file attachment, capability toggles

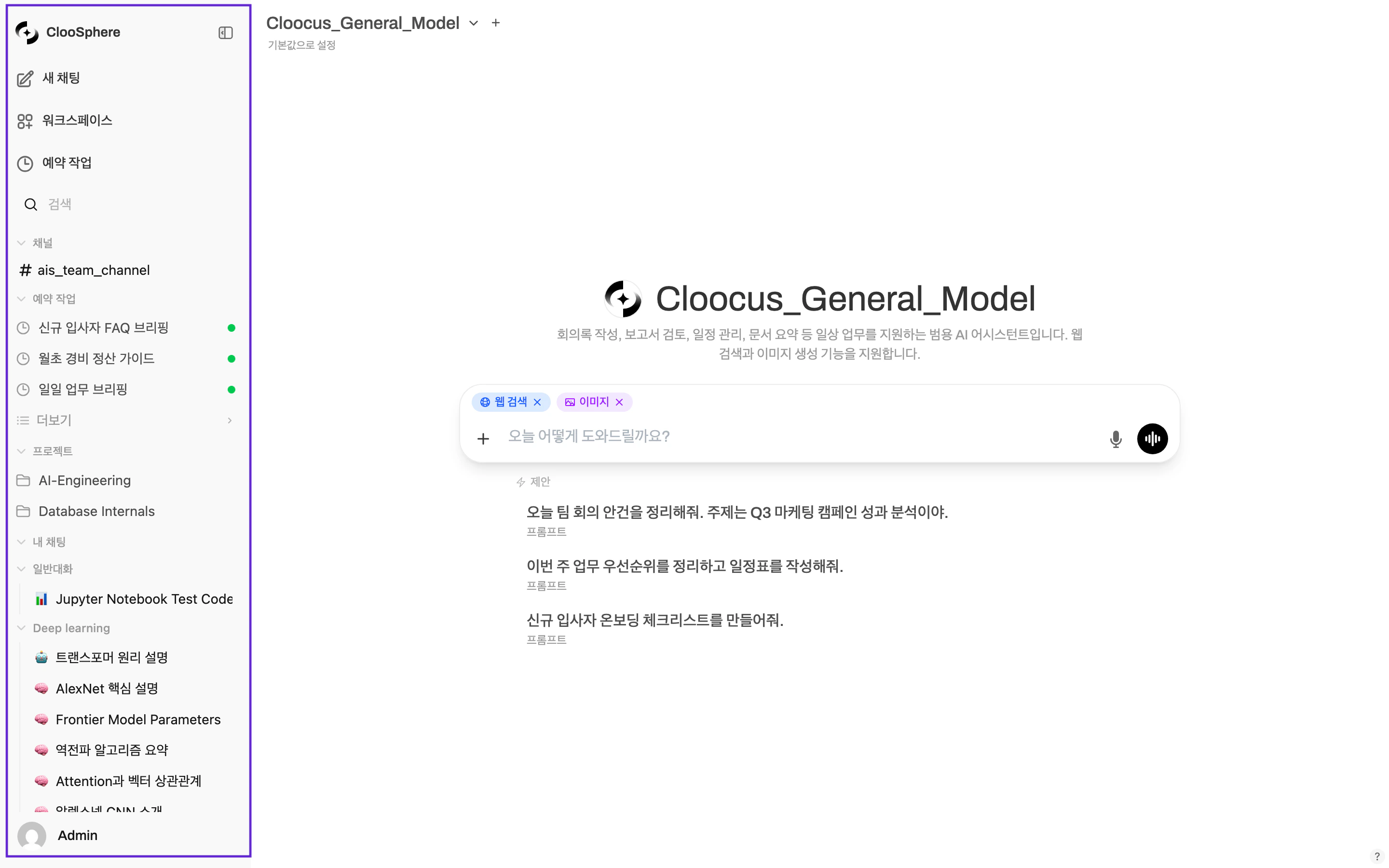

The sidebar on the left is the primary navigation area in Cloosphere. Everything from chat list management to entering Workspace starts here.

Element	Description
Logo	Click to go to the main screen (`/`)
Collapse/Expand button	Collapses or expands the sidebar. When collapsed, only icons are shown
New Chat	Starts a new conversation. Click during an existing chat to jump to a fresh chat screen

Use the keyboard shortcut Ctrl + Shift + S to quickly toggle the sidebar.

Workspace Link

Clicking the Workspace button takes you to the workspace page (/workspace) where you manage AI building blocks like Agents, Knowledge Bases, Databases, and Flows.

The Workspace link is only shown to users with appropriate permissions. If you don’t see it, ask your admin for access.

Schedules Link

Takes you to the Schedules page (/schedules) for managing scheduled tasks. Configure and manage CRON-based automatic execution.

The Schedules link is only shown to admins or users with the scheduled-task permission (scheduled_tasks).

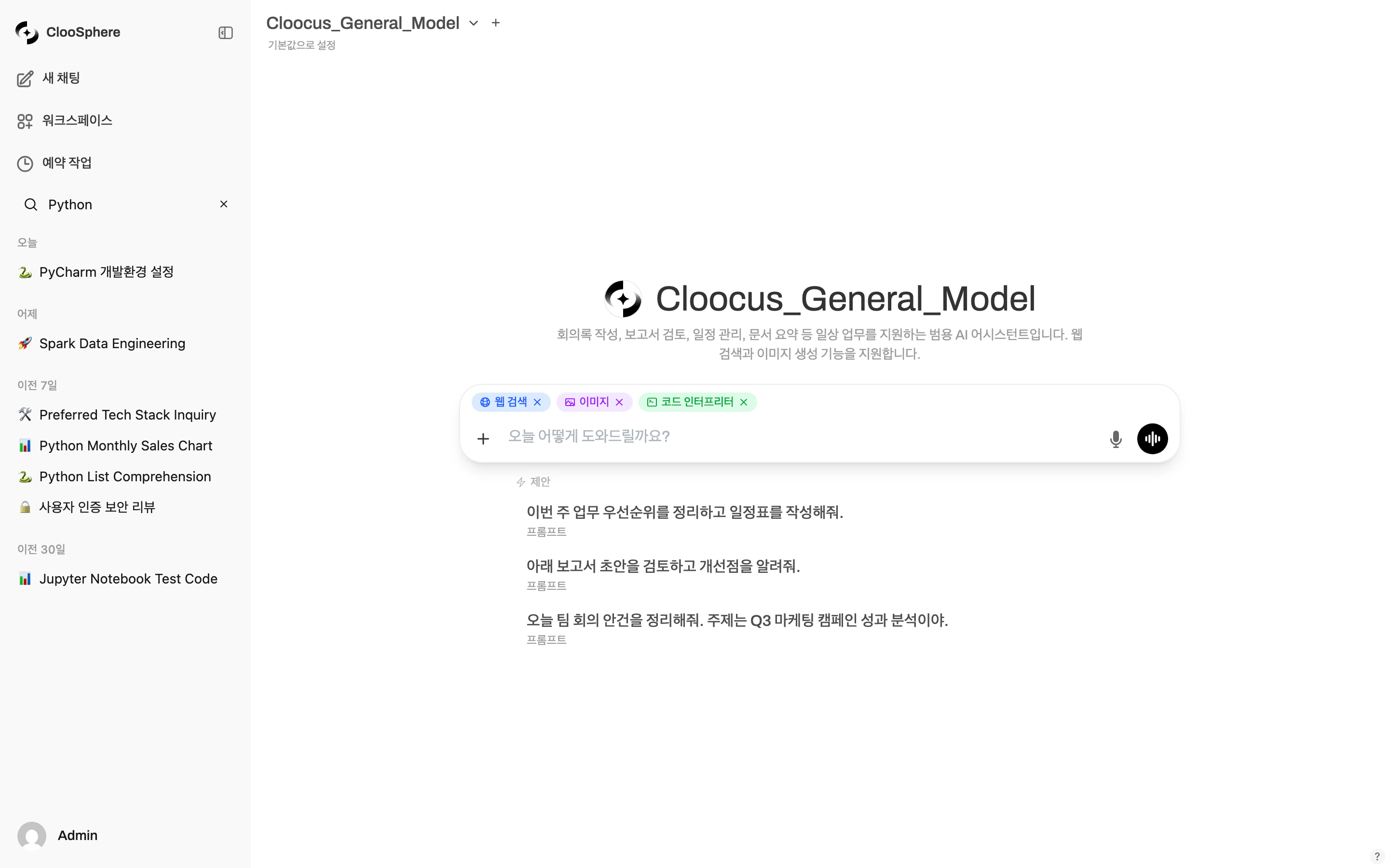

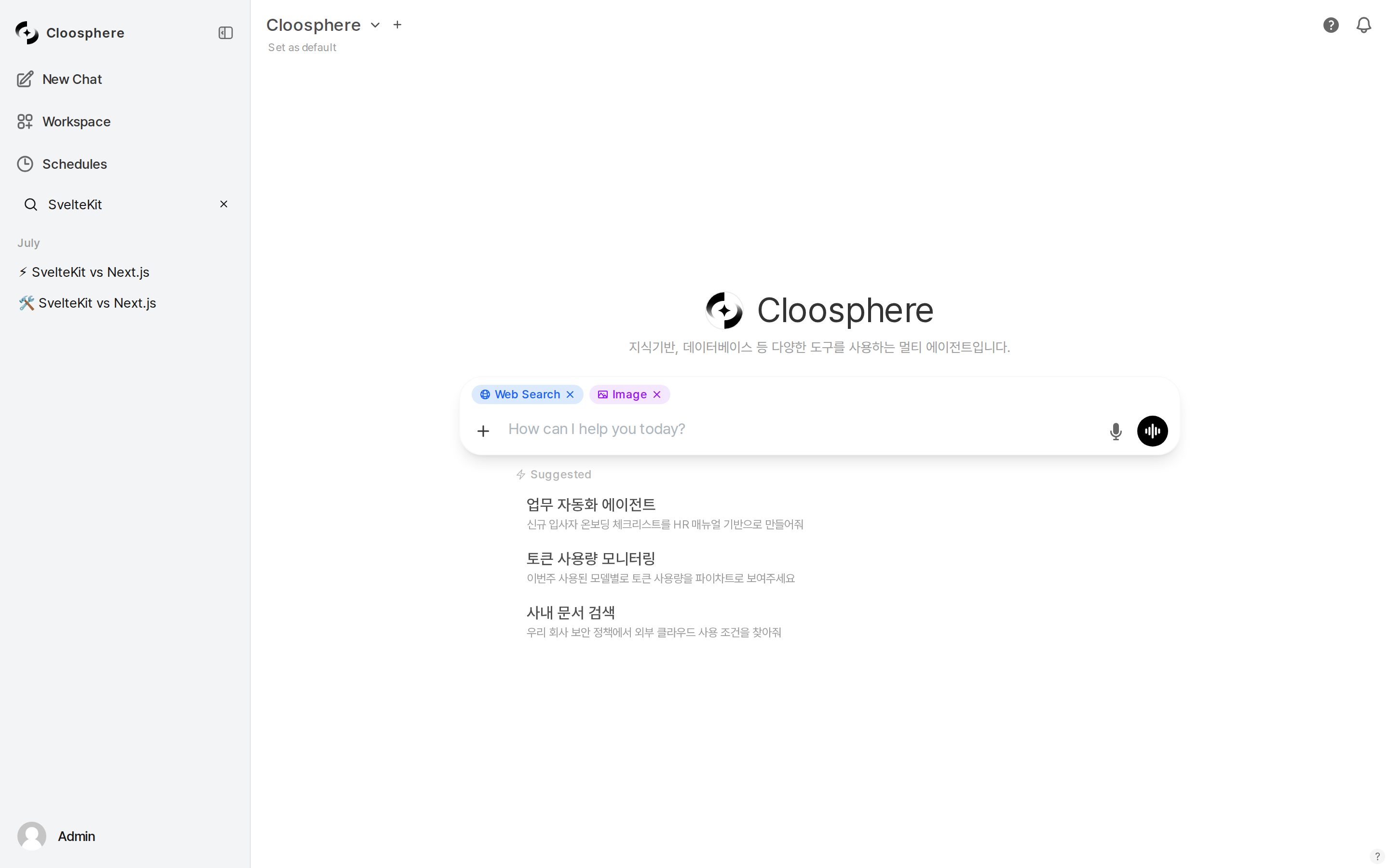

Search

Type a keyword in the sidebar’s search box to find matching conversations by chat title and content. Search runs automatically 1 second after typing stops.

Chat List

Most of the sidebar is occupied by the chat list, organized into the following sections in order:

Channels

Real-time team messaging space. Shown when admins have enabled the Channels feature.

Click a channel to jump to its message list
Admins can use the + button to create a new channel

Schedules

List of scheduled automatic tasks. Shows next-run time and status.

Projects

Team-based space for grouping chats. Projects you’ve joined appear here.

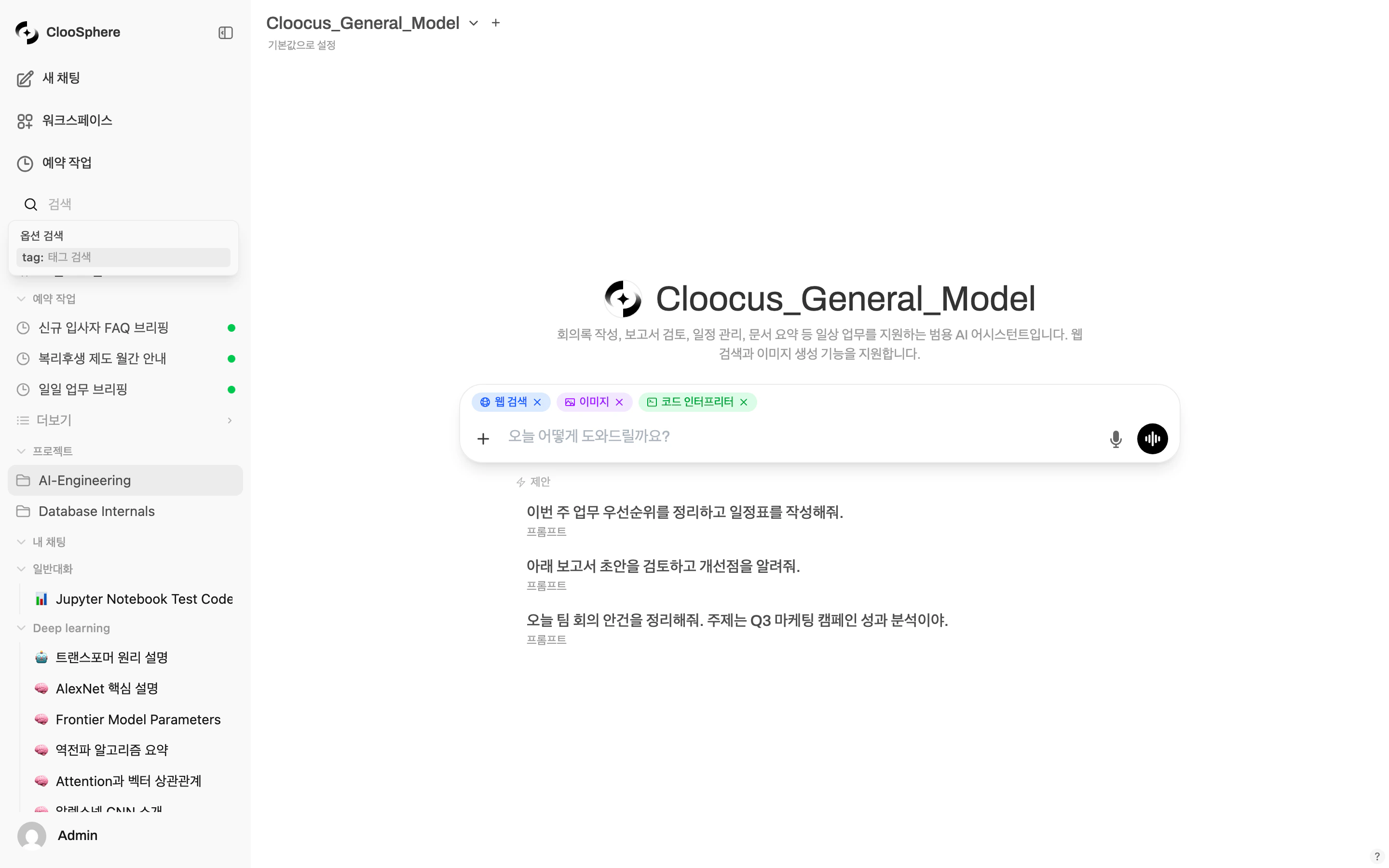

My Chats

Your personal conversations, sorted by time. Supports:

Pinned: Pin important conversations at the top
Folders: Organize chats into folders. Use New Folder to create one, then drag and drop chats
Time-range groups: Auto-grouped into Today, Yesterday, Previous 7 days, Previous 30 days, and by month

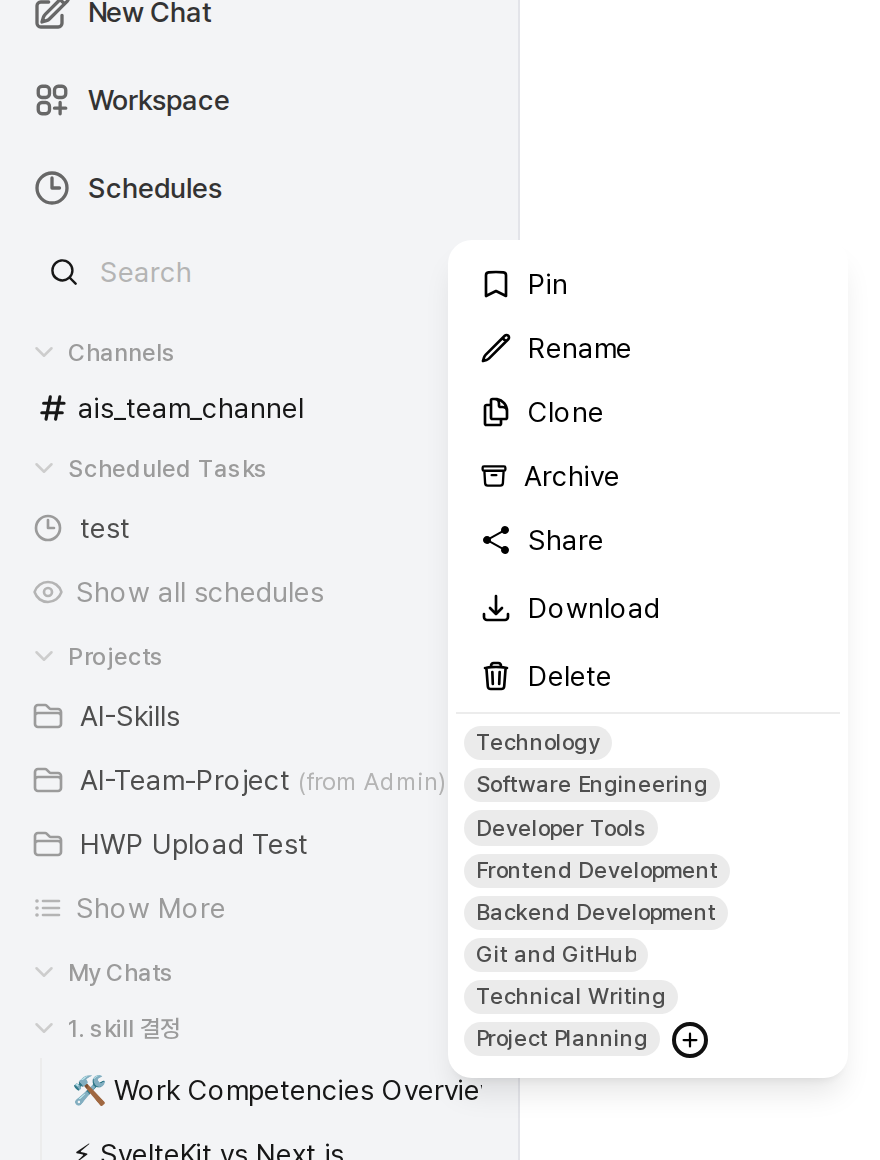

Right-click a chat to open a context menu with rename, pin, delete, share, etc.

User Profile

Your profile image and name appear at the bottom of the sidebar. Click to open a dropdown menu.

Menu Item	Description
Settings	Personal settings (theme, language, default model, etc.)
Archived Chats	List of archived conversations
What’s New	Recent changes and update log (admins only)
Admin Panel	Admin Panel (visible to admins or anyone with permission for users, evaluations, functions, settings, or monitoring)
Contact Admin	Send a message to the admin (regular users)
Sign Out	Sign out

The bottom of the profile menu shows the current count of online users.

Located at the top of the chat screen — selects and controls the AI model used in the current conversation.

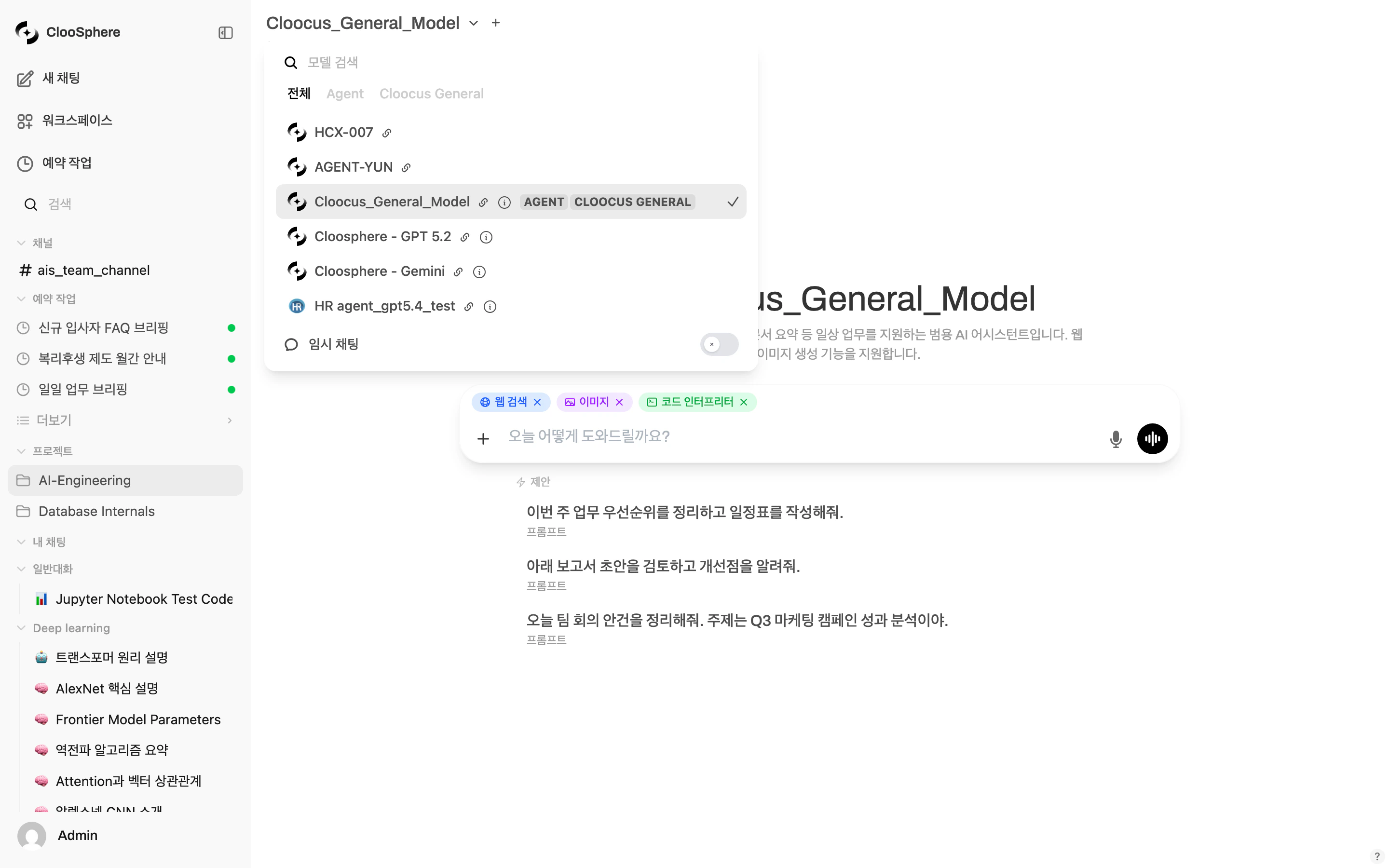

Model Selector

Click the “Select a model” dropdown to see available models.

Type a model name to search
Click the bookmark icon next to a model to set it as default
Admins or permitted users can use the + button to add multiple models simultaneously and compare responses

If the multi-model comparison feature isn’t visible to regular users, the admin has disabled the corresponding permission (multiple_models).

Notification History

Click the bell icon at the right of the header to open the system notification history panel. It collects notifications such as file processing completion, errors, and permission changes.

Feature	Description
Unread badge	Red circular number on the bell icon (shows “9+” beyond 9)
Notification types	Distinguished by icon — success (green), error (red), warning (yellow), info (blue)
Copy	Copies the notification message to the clipboard
Per-item / Clear all	Remove with the per-item × button or “Clear all”

Opening the panel marks unread notifications as read and clears the badge.

Background task progress is also integrated into the notification center — Knowledge Base file uploads/metadata extraction, DbSphere syncs, glossary DB extraction, Knowledge Graph syncs, and other long-running tasks all stream their progress here in real time. Once the task completes, the notification stays in this panel so you can review the result.

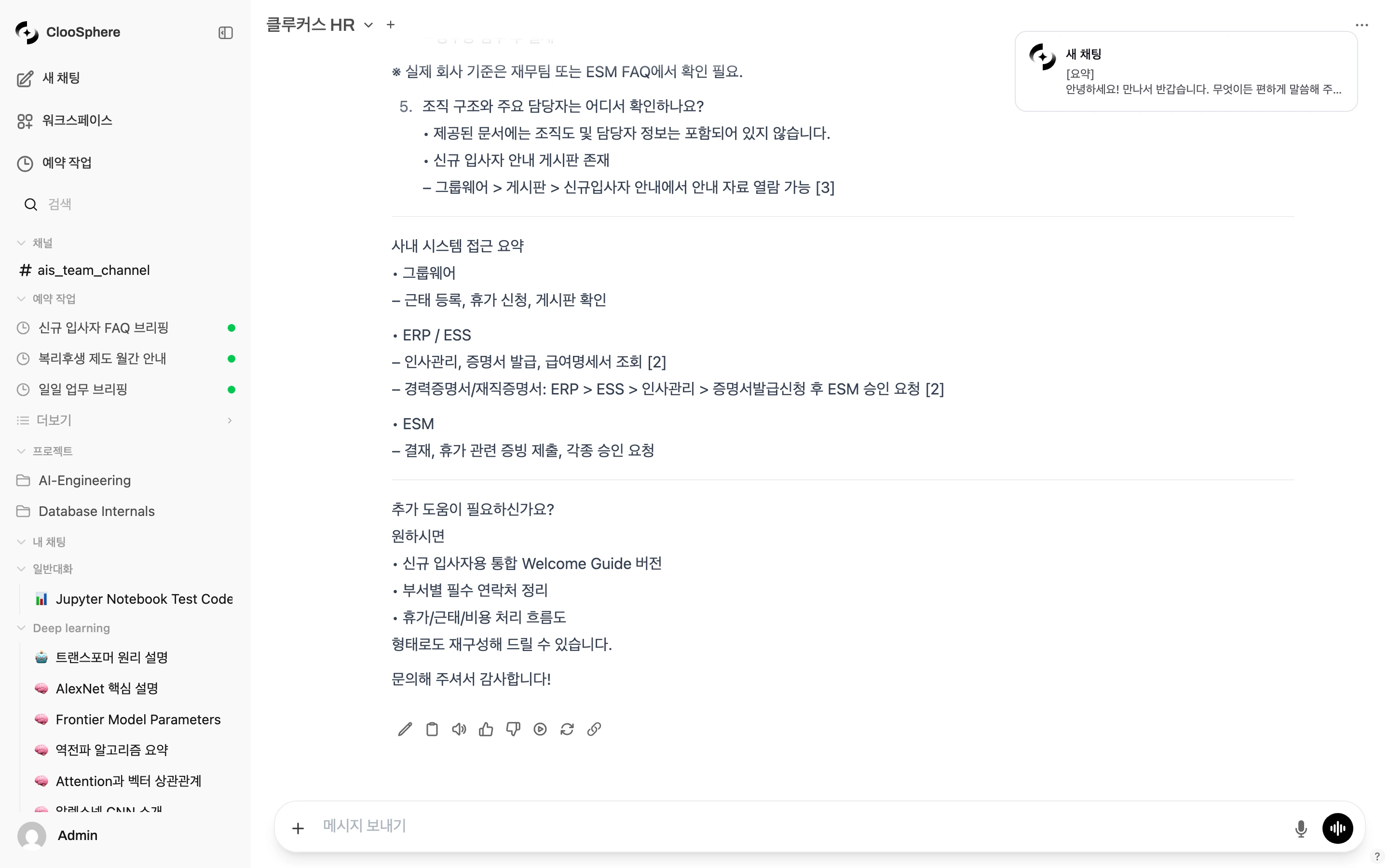

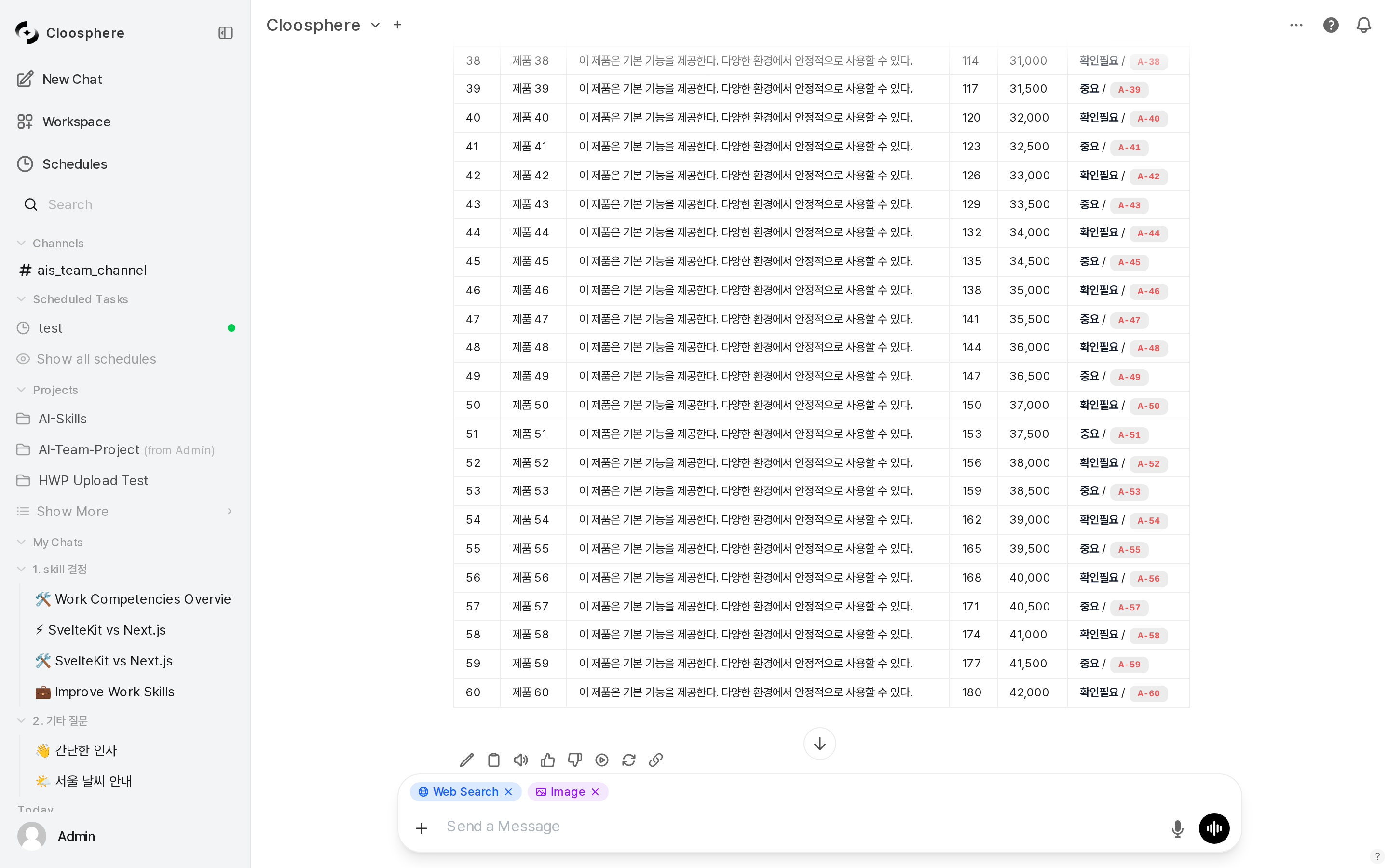

Chat Message Area

The center of the screen displays the conversation between the user and the AI.

User Messages

Shows the entered text and any attached files
Hovering over a message reveals an edit icon — modify the content and resend

AI Responses

Markdown rendering supported (headings, lists, tables, code blocks, etc.)
Code blocks include syntax highlighting and a copy button
Math is rendered with LaTeX
Below each response: Copy, Regenerate, Listen, Like/Dislike buttons

New Chat Welcome Screen

When there are no messages yet, the platform logo and a welcome message like “What can I help you with?” appear. Admin-configured suggested prompts may appear as cards.

Input Area

The message input area at the bottom of the screen offers several extras beyond plain text input.

Element	Position	Description
+ (Attach)	Left of input	File attachment, cloud storage (SharePoint) integration
Text input	Center	Rich-text editor for entering questions/requests
Send button	Right of input	Sends the message (same as `Enter`)
Microphone button	Right of input	Voice-to-text input (STT)

Capability Buttons (shown based on agent settings)

Depending on the agent’s capability settings, additional buttons may appear in the input area.

Button	Description
Web Search	The AI references real-time web search results when answering
Image Generation	Generates images from a text prompt
Code Interpreter	Runs Python code directly and returns the result

Dark Mode

Cloosphere supports both light mode and dark mode.

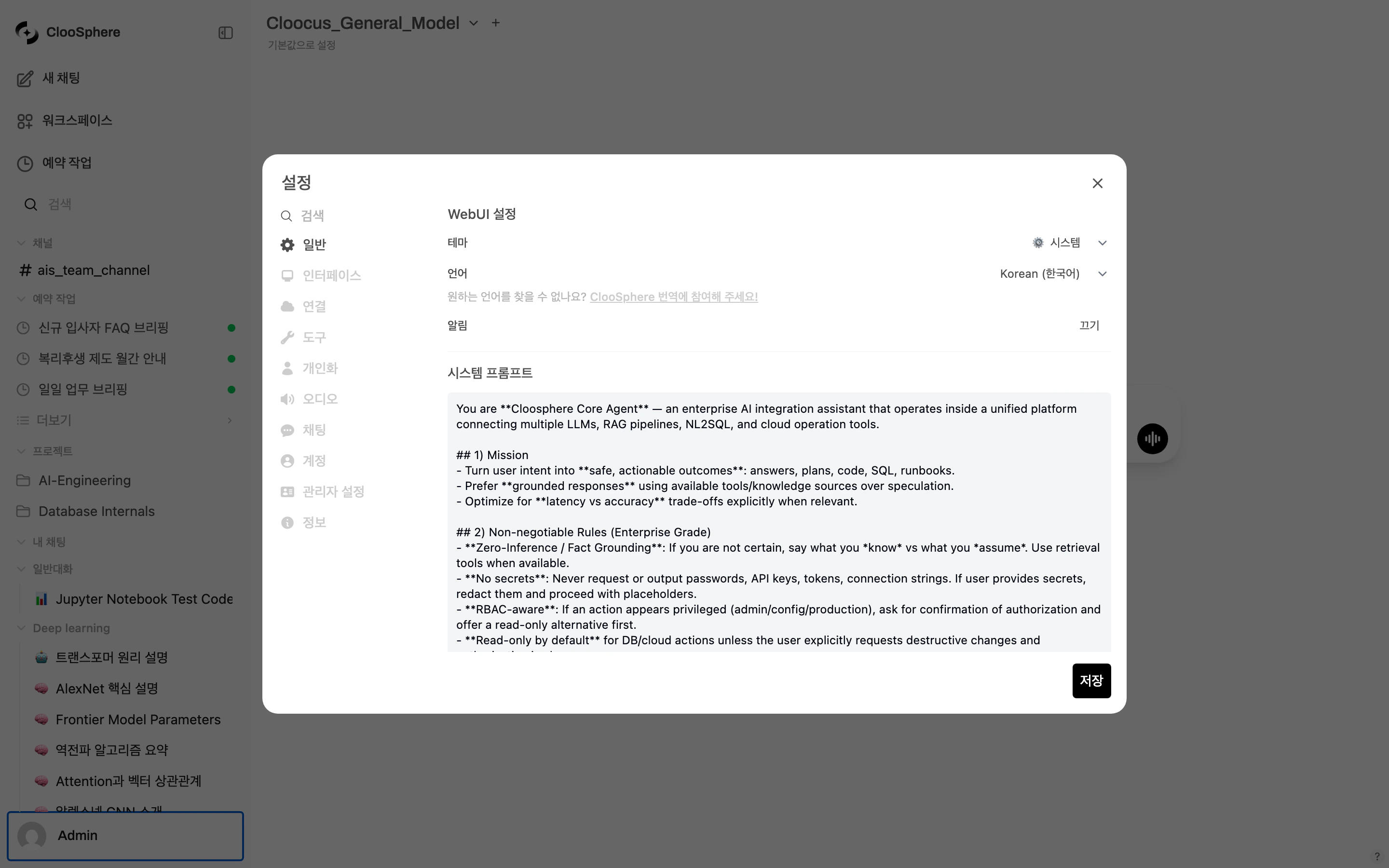

Open Settings

Click your profile at the bottom of the sidebar and select Settings.

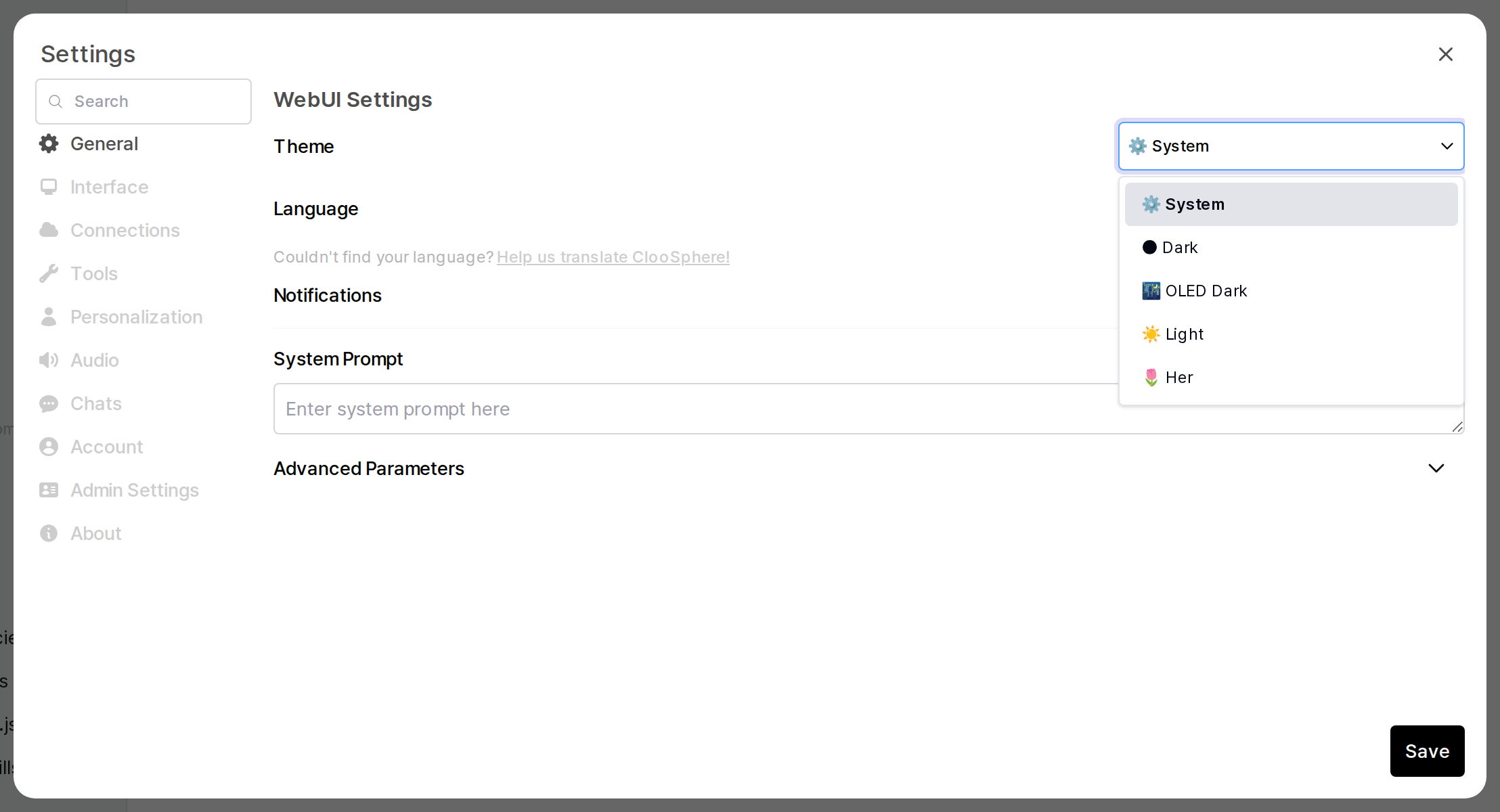

Change theme

Under the General tab, choose a Theme option.

System: Follows the OS setting
Light: Light theme
Dark: Dark theme

The sidebar supports two states.

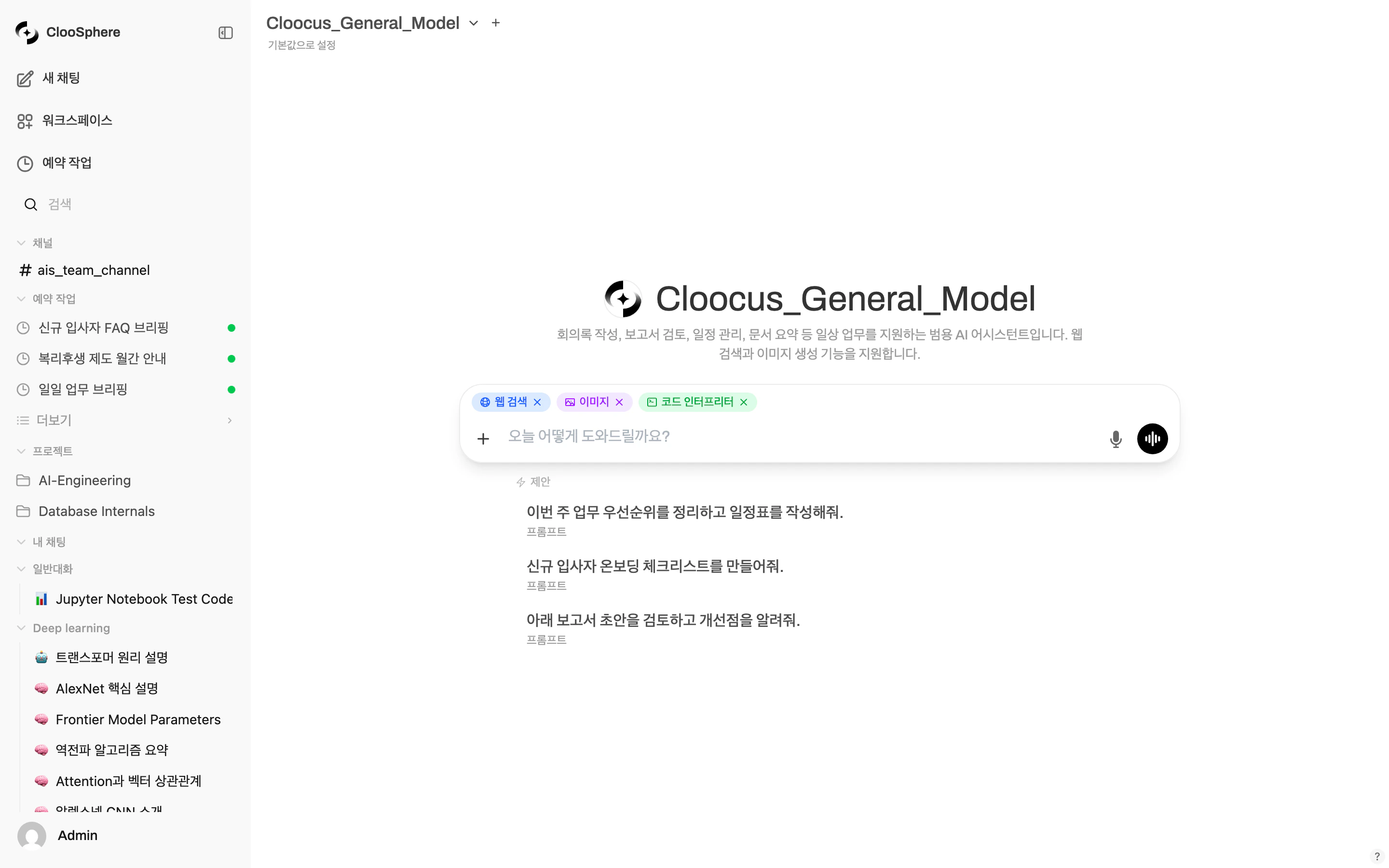

Expanded (260px)
Collapsed (68px)

Logo, name, and menu text are all visible
Search box accepts input
Chat list takes the full width

How to switch:

Click the collapse/expand toggle at the top of the sidebar
Keyboard shortcut: Ctrl + Shift + S
Mobile: swipe from the left edge of the screen

Keyboard Shortcuts

Shortcut	Action
`Enter`	Send message
`Shift + Enter`	Line break
`Ctrl + Shift + O`	New chat
`Ctrl + Shift + S`	Toggle sidebar
`Ctrl + /`	Open keyboard shortcuts panel

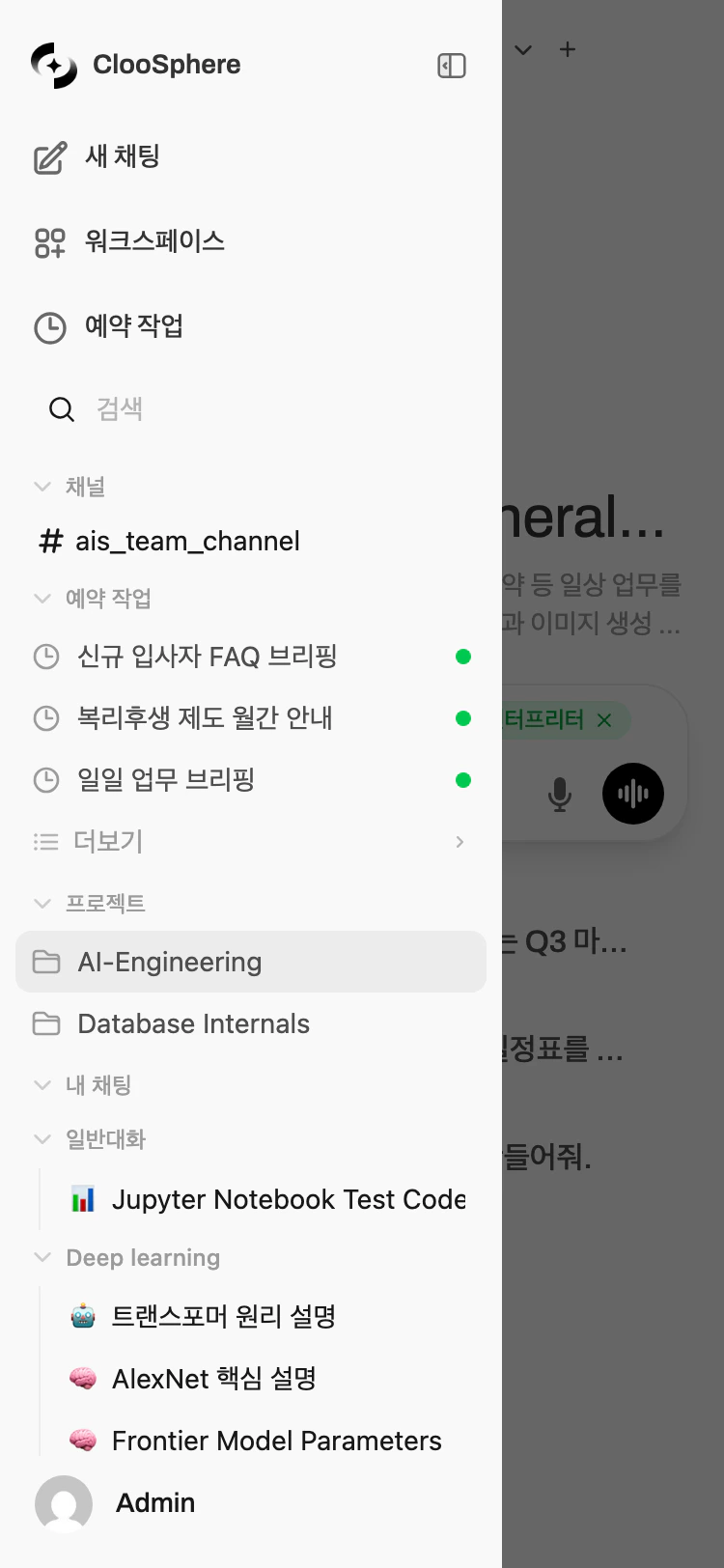

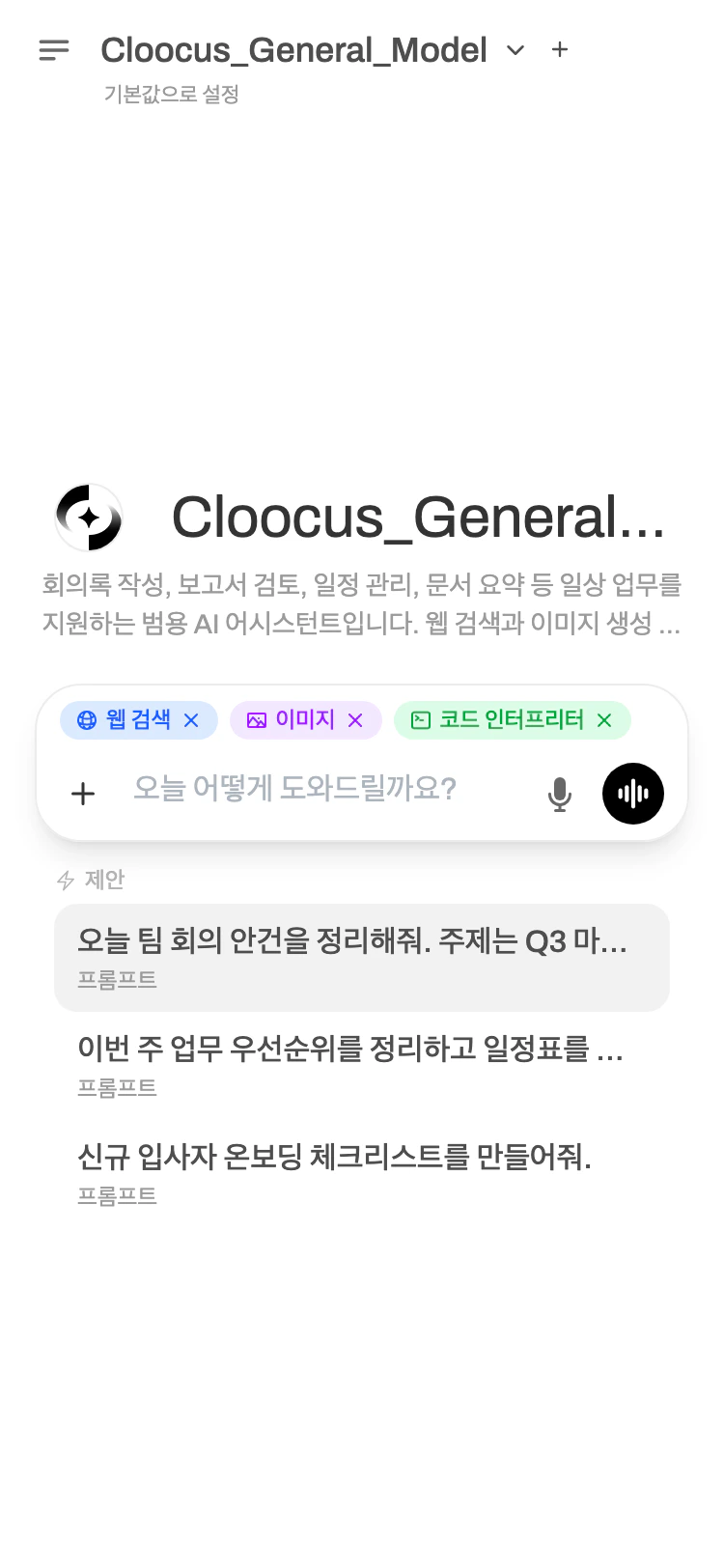

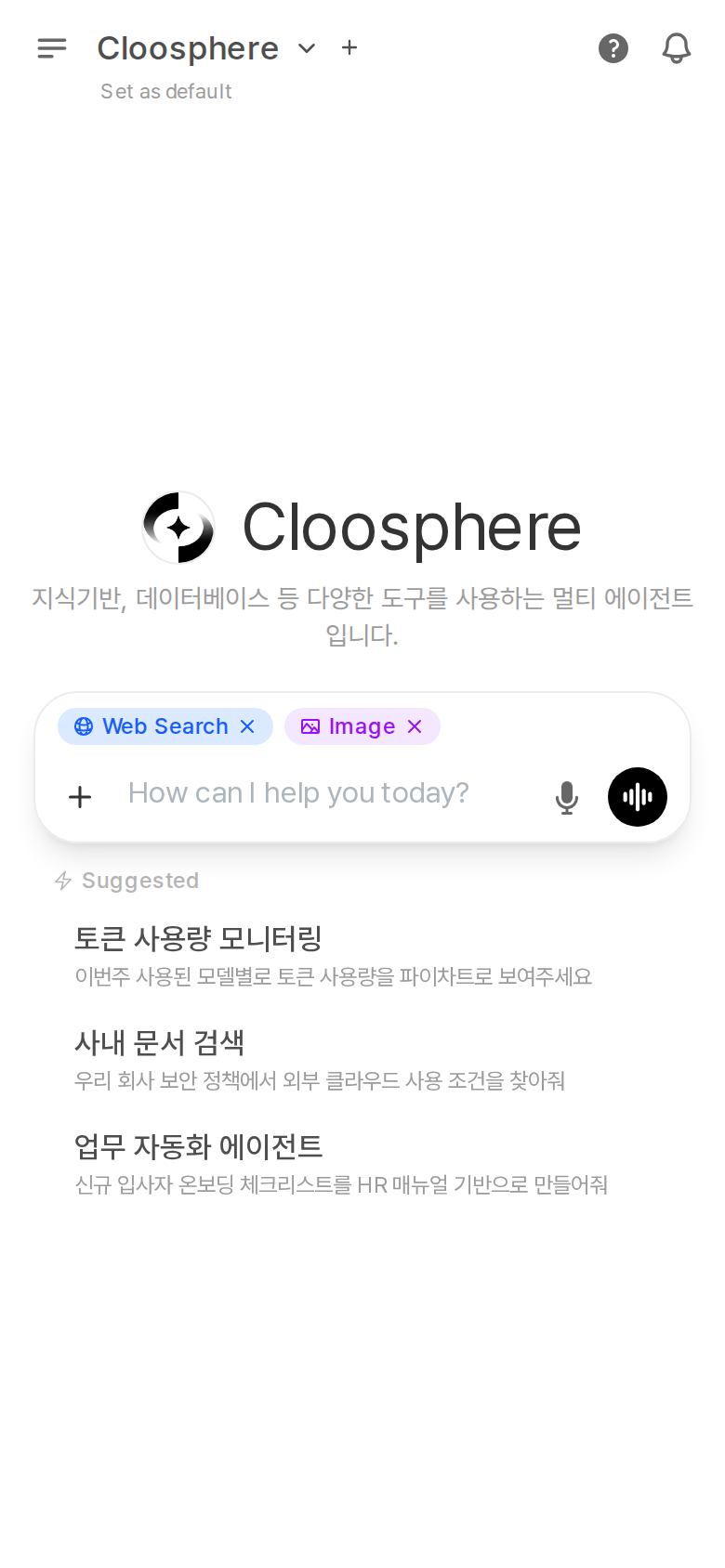

Mobile Layout

In mobile environments (≤ 768px), the UI adapts automatically.

The sidebar starts in a hidden state by default

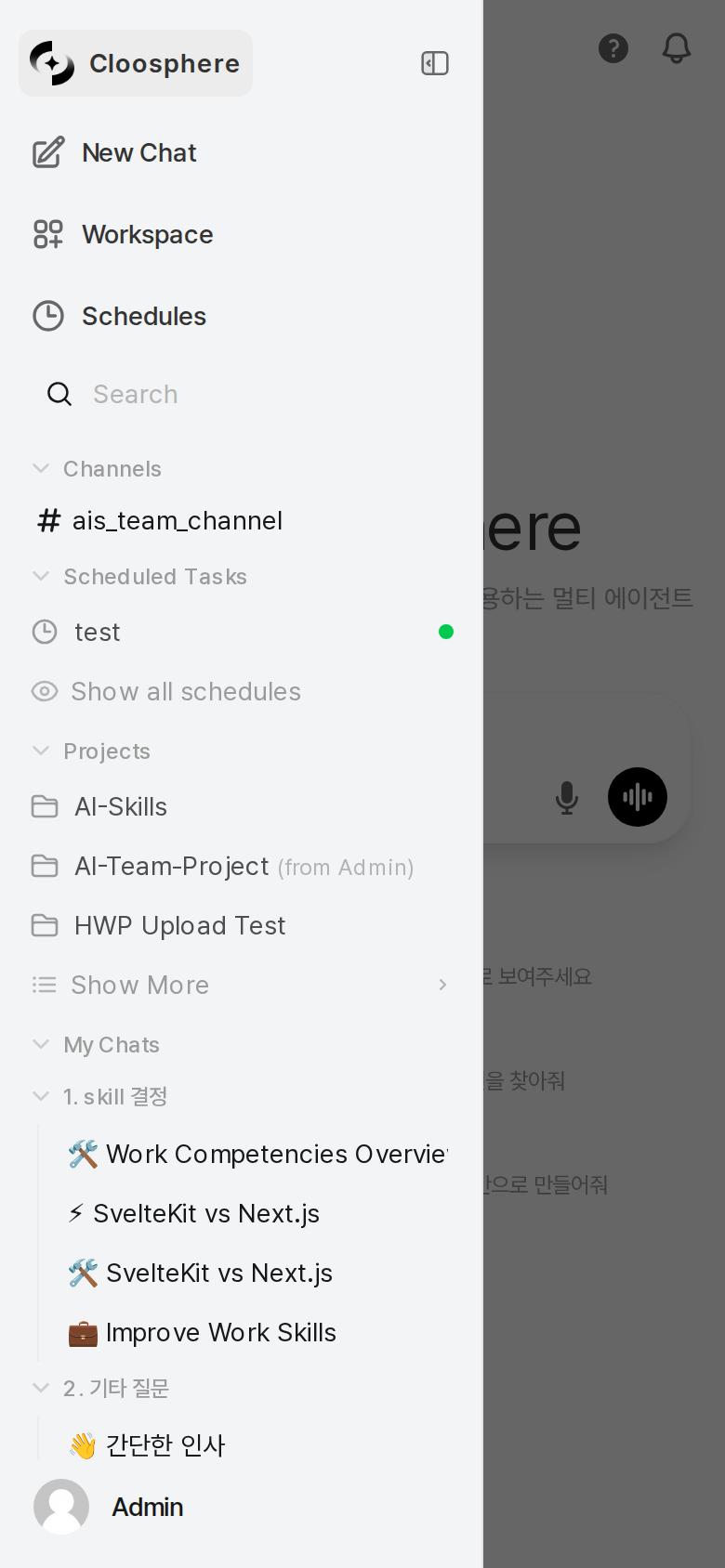

Open sidebar: swipe right from the left edge or use the hamburger menu
Close sidebar: tap outside the sidebar to close it automatically
The sidebar auto-closes when you tap a menu item

Guide Q&A Helper

Click the question mark (?) button in the bottom-right corner to open the guide-document-based Q&A chatbot. Ask any question about how to use Cloosphere in natural language — the AI searches the guide and answers.

Item	Description
Position	Floating ? button at the bottom-right of the screen
Available to	All signed-in users
Response source	Cloosphere guide documents (ReAct agent based)
Model selection	Change the AI model from the top of the chat panel

Answers questions like “How do I configure knowledge base filters?” or “How do I send email notifications via scheduled tasks?”. Use it to quickly look up how a feature works.
